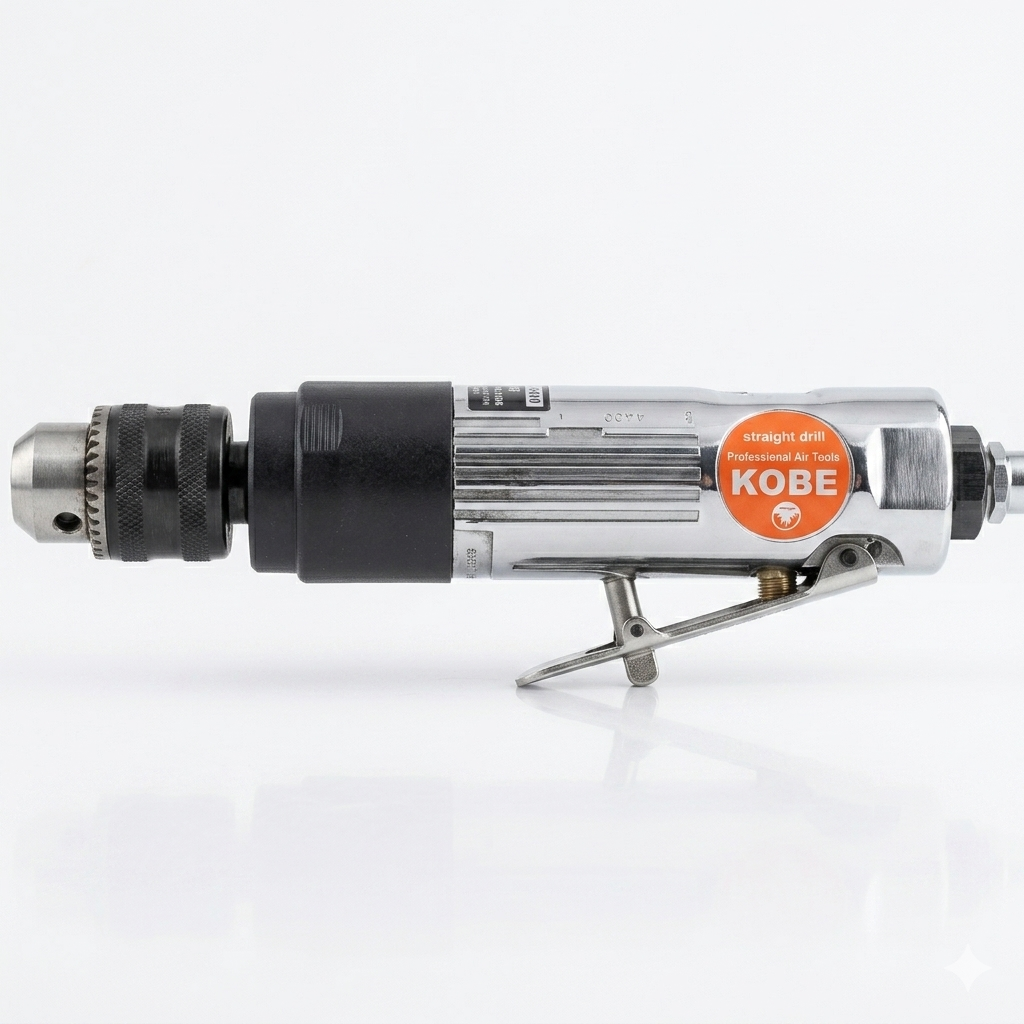

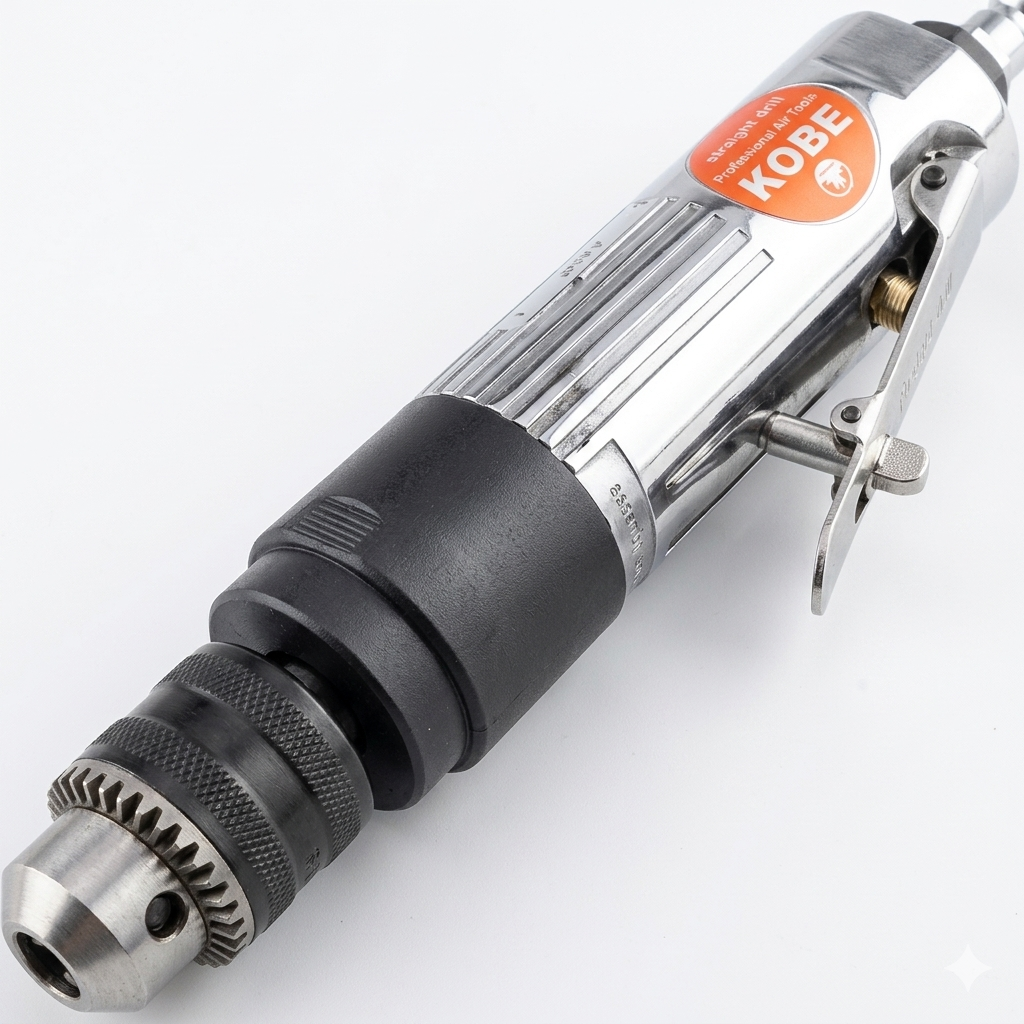

DS4510L 10mm Straight Air Drill
DS4510L 10mm Straight Air Drill
Couldn't load pickup availability
Kobe Red Line DS4510L, Air Drill, Air, 4500rpm, Keyed, 1 to 10mm, 1/4in., 336W
Product Information:Â
A powerful and dependable straight air drill, featuring a 10mm Jacobs chuck and a 24 spindle thread.
Features and Benefits:
- Stall-resistant design
- Safety lever throttle, for peace of mind
- High performance air drill with planetary gearing
Notes:
- Air inlet thread: 1/4" NPT
- Chuck capacity: 10mm
- Spindle thread: 3/8" - 24
- Minimum air hose size (ID): 3/8"(10mm)
- Air pressure: 90PSI/6.3Bar
- Air consumption: 4CFM* (144ltr/min)
- Sound pressure level: 100dB(A)
- Sound power level: 103dB(A)
- Vibration level: 2.5m/s²
- Overall length: 190mm
*Based on a 15 second cycle per minute average use
|
Attribute |
Value |
|---|---|
|
Air Consumption |
113CFM |
|
Air Inlet Size |
1/4in. |
|
Air Pressure |
90psi |
|
Brand |
Kobe Red Line |
|
Chuck Capacity |
10mm |
|
Chuck Type |
Keyed |
|
Compatible Hose Inner Diameter |
10mm |
|
EAN |
5036140089068 |
|
ECLASS Code |
21052003 |
|
Features |
Safety Lever |
|
Item |
Air Drill Driver |
|
Length |
190mm |
|
MFR Part No. |
DS4510L |
|
Model Number |
DS4510L |
|
No Load Speed |
4500rpm |
|
Noise / Vibration Information |
Vibration Uncertainty K: 0.45m/s² |
|
Power |
336W |
|
Power Source |
Air |
|
Reversibility |
Non-reversible |
|
UNSPSC Code |
27112703 |
|
Weight |
0.9kg |
|
Width |
42mm |
Â
SKU: KBE2701450N
