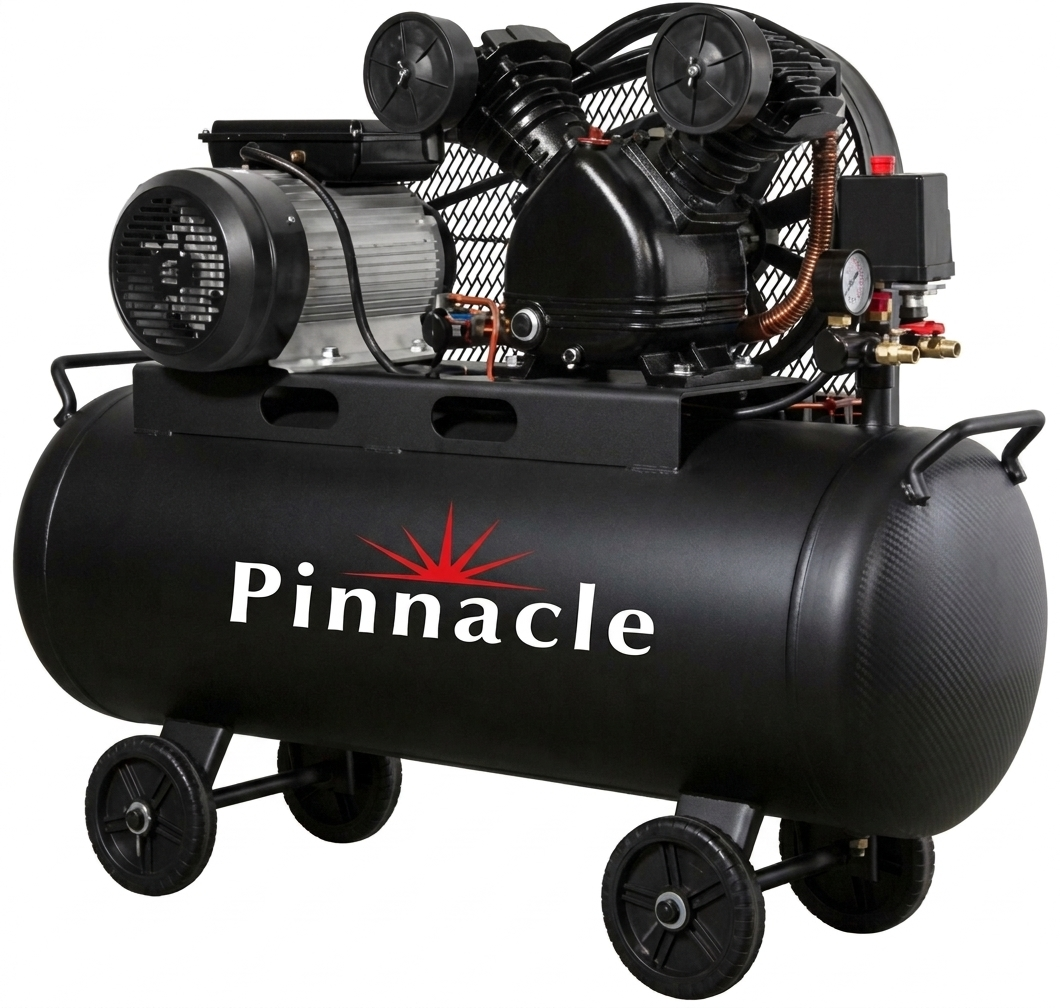

Pinnacle AirTech 200L Belt Driven Air Compressor

Product Information:

• 200L Belt Driven Air Compressor
• 4 x wheels
• On/Off Pressure Switch
• Pressure Gauge
• Air filter fitted heads

• Pulling handles on either side

Operators guide included.

Technical Data:

• Classification: Stationary Air Compressor
• FR & CS:  Oil Sump Splash Lubricated / Air Fan
• Input Voltage / Current: 220-230V AC / 10A
• Frequency: 50Hz

• Input Power Rating: 3.0KW / 4HP  (*1)
• Electric Motor Configuration: Induction Motor (AI Core )
• Tank Size: 200L
• Air-pump Configuration: 3 x Cylinder (65mm*3)

• Motor Speed: 9700rpm
• Power Transmission System: Pulley & V-belt Drive
• Noise Emission: 95db
• Max Operating Pressure: 8 Bar / 115 Psi
• Max Free Air Delivery Rate: 360 L/min / 12.72 CFM
• Nett Weight: 127kg
• Dimensions: 1320mm (L) x 440mm (W) x 900mm (H)

Safety & Manufacture Standards:

• SPVD Standard Certification: IEC EN 1210-2010
• EEM Standard Certification: IEC EN 6024-2018
• ENE Certification: 2000/14/EC (Annex Vi) + 2005/88/EC

SKU: 17AIRBD/200-36
