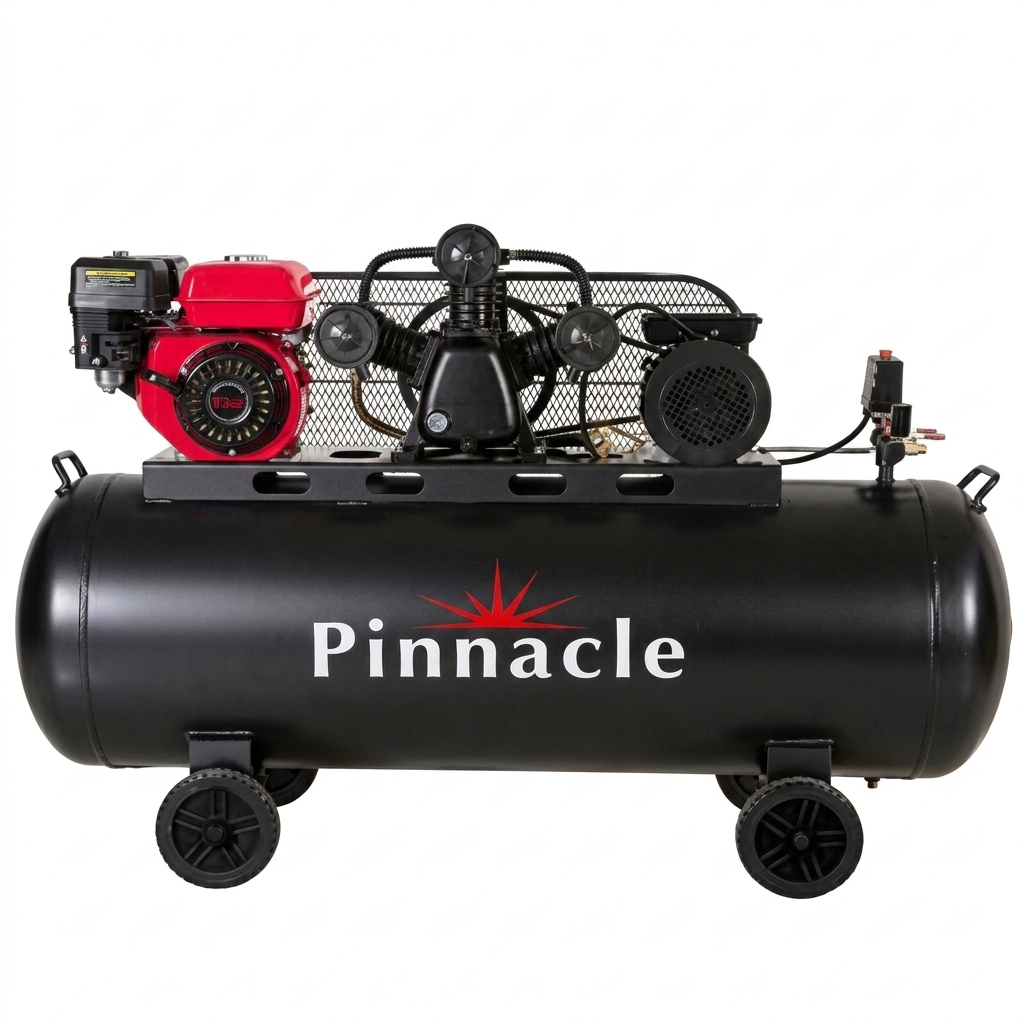

Pinnacle AirTech 100L Engine & Motor Dual Air Compressor

Product Information:

• 100L Engine & Motor Dual Driven Air Compressor
• 4 x wheels
• Air filter fitted heads
• Pressure gauge
• Pulling handles on either side


Operators guide included.

Technical Data:

• Classification: Stationary Air Compressor
• FR & CS: Oil Sump Splash Lubricated / Air Fan
• Input Voltage / Current: 220-230V AC / 10A
• Engine Type / Fuel: Gasoline (Petrol) 93 Octane
• Power Rating: 4-8KW / 6.5HP
• Electric Motor Configuration: Induction Motor (AI Core )
• Tank Size: 100L
• Air-pump Configuration: 3 x Cylinder (65mm*3)
• Motor Speed: 970rpm
• Power Transmission System: Pulley & V-belt Drive
• Noise Emission: 95db
• Max Operating Pressure: 8 Bar / 115 Psi
• Max Free Air Delivery Rate: 360 L/min / 12.72 CFM
• Nett Weight: 130kg
• Dimensions: 1630mm (L) x 600mm (W) x 1160mm (H)

Safety & Manufacture Standards:

• SPVD Standard Certification: IEC EN 1210-2010
• EEM Standard Certification: IEC EN 6024-2018
• ENE Certification: 2000/14/EC (Annex Vi) + 2005/88/EC

SKU: 17AIREBM/100-36
