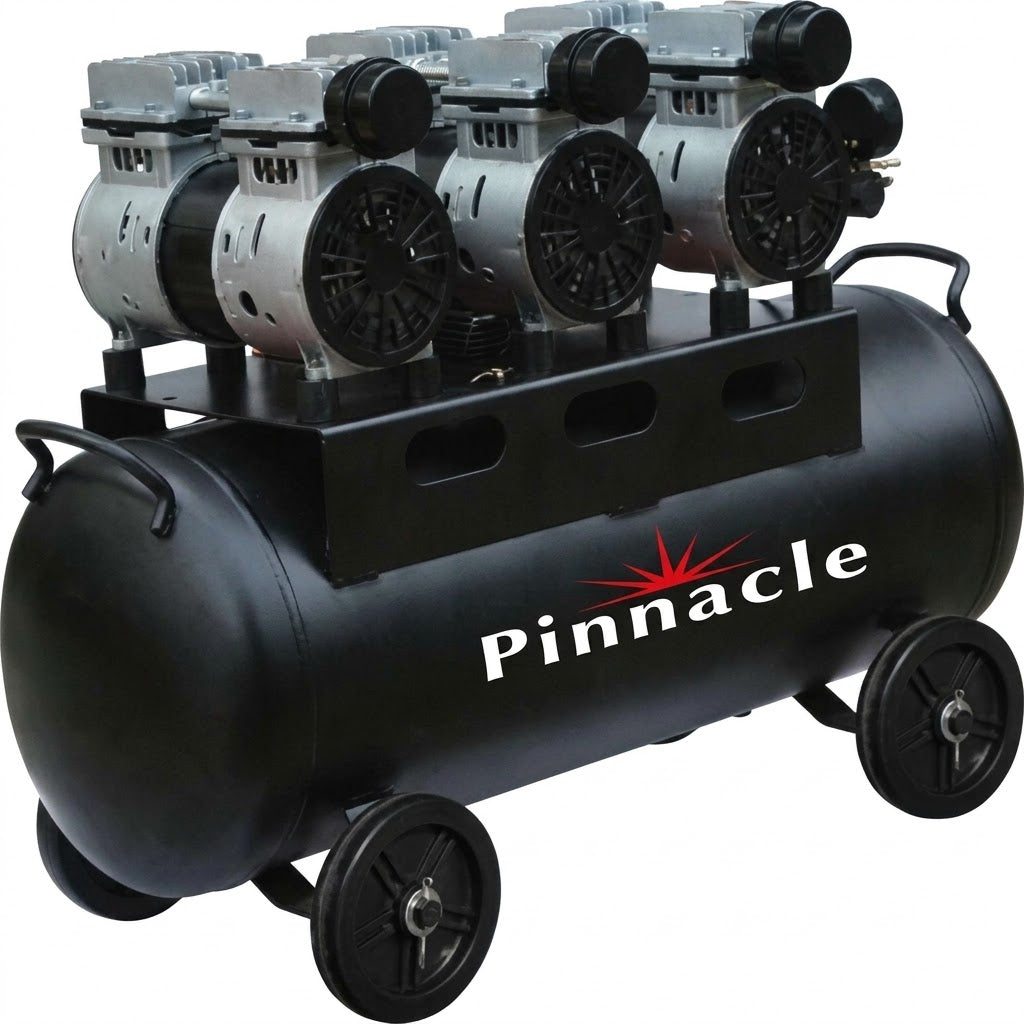

Pinnacle AirTech 100L Oil-Free Air Compressor

Product Information:

• 100L Oil-free Air Compressor
• 4 x wheels
• 3 Heads (3x750W)
• Air filter fitted heads
• Pressure gauge
• Pulling handles on either side


Operators guide included.

Technical Data:

• Classification: Stationary Air Compressor
• FR & CS: Ceramic / Teflon Oil-free
• Input Voltage / Current: 220-230V AC / 8A
• Frequency: 50Hz

• Input Power Rating: 750W (*3)
• Electric Motor Configuration: 4 Pole (AI Core 118x70x80mm )
• Tank Size: 100L
• Air-pump Configuration: 6 x Cylinder (63.7mm)

• Noise Emission: 95db
• Max Operating Pressure: 8 Bar / 115 Psi
• Max Free Air Delivery Rate: 372 L/min / 13.14 CFM
• Nett Weight: 70kg
• Dimensions: 920mm (L) x 350mm (W) x 690mm (H)

Safety & Manufacture Standards:

• SPVD Standard Certification: IEC EN 1210-2010
• EEM Standard Certification: IEC EN 6024-2018
• ENE Certification: 2000/14/EC (Annex Vi) + 2005/88/EC

SKU: 17AIROF100/3-75
