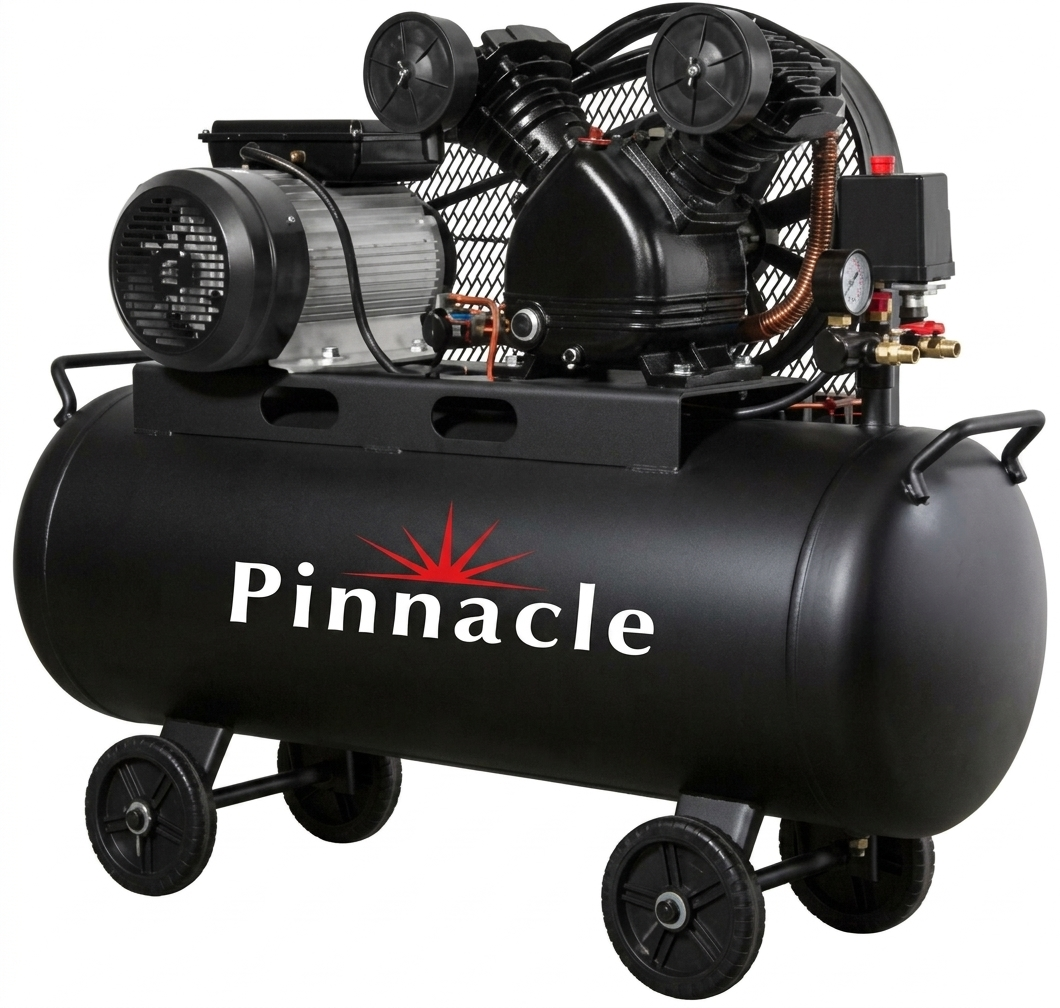

Pinnacle AirTech 100L Belt Driven Air Compressor

Product Information:

• 100L Belt Driven Air Compressor
• 4 x wheels
• On/Off Pressure Switch
• Air filter fitted heads

• Pulling handles on either side

Operators guide included.

Technical Data:

• Classification: Stationary Air Compressor
• FR & CS:  Oil Sump Splash Lubricated / Air Fan
• Input Voltage / Current: 220-230V AC / 10A
• Frequency: 50Hz

• Input Power Rating: 2.2KW / 3HP  (*1)
• Electric Motor Configuration: Induction Motor (AI Core )
• Tank Size: 100L
• Air-pump Configuration: 2 x Cylinder (65mm*2)

• Motor Speed: 1000rpm
• Power Transmission System: Pulley & V-belt Drive
• Noise Emission: 95db
• Max Operating Pressure: 8 Bar / 115 Psi
• Max Free Air Delivery Rate: 250 L/min / 8.83 CFM
• Nett Weight: 60kg
• Dimensions: 1120mm (L) x 415mm (W) x 790mm (H)

Safety & Manufacture Standards:

• SPVD Standard Certification: IEC EN 1210-2010
• EEM Standard Certification: IEC EN 6024-2018
• ENE Certification: 2000/14/EC (Annex Vi) + 2005/88/EC

SKU: 17AIRBD/100-25
