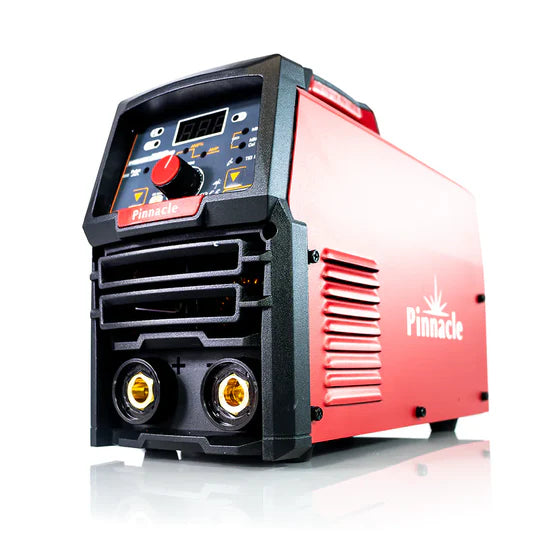

Pinnacle PROARC 200CP MMA Welding Machine

Product Information:

• IGBT module technology for superior performance and reliability.
• Hot start function for easy arc starts.
• Anti-sticking function to prevent electrode sticking.
• Arc force function for a stable arc.
• VRD function for reduced risk of electric shock.
• Capable of MMA/ARC welding and LIFT TIG welding.
• 200Amp welding machine.
• LCD Display & Synergic operation.
• Automatic Spot Welding can be done by automatically starting& ending arc according to set interval time

Technical Data:

• Input Power Voltage: AC 220V ± 15%, 1PH
• Input Voltage Frequency: 50/60 Hz
• Efficiency: 80%
• Rated Input Current: 40 A
• No-Load Voltage: 93 V
• Output Current Range: 10–200 A (MIG/TIG)
• Power Factor: 0.83
• Duty Cycle: 60%
• Welding Electrode Size: 1.0 mm – 5.0 mm
• Insulation Class: H
• Protection Class: IP21S

SKU: 6-PROA01
