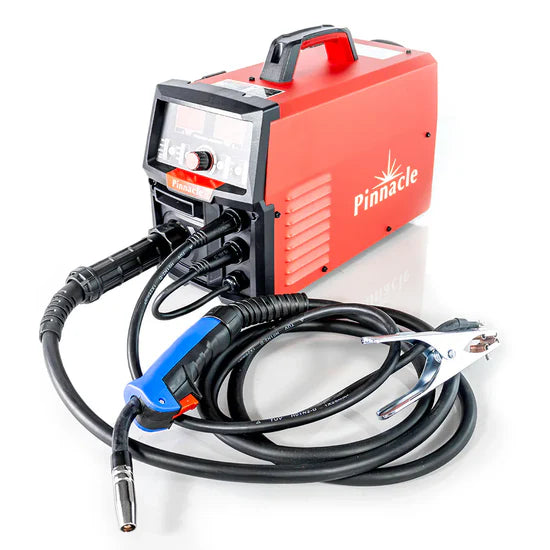

Pinnacle PROMIG 200PET MIG Welding Machine

Product Information:

• IGBT Module Technology
• Good effective welding with less spatter, suitable for thin plate welding
• Available for 0.6/0.8/1.0mm 1-5kg Flux Cored and solids welding wire
• Sigle pulse available for 1.0mm 1-5kg AL-Mg Welding wire
• MMA available for 1-5mm welding electrodes
• 230V AC – 200Amp

Technical Data:

• Input Power Voltage: AC 220V ± 15%, 1PH
• Input Voltage Frequency: 50/60 Hz
• No-Load Voltage: 7.7 V
• Rated Input Current: 35 A
• PMIG Output Current Range: 20–170 A
• MIG Output Current Range: 50–200 A
• MMA/TIG Output Current Range: 20–200 A
• Duty Cycle: 60%
• Efficiency: 85%
• Power Factor: 0.83
• Post Gas Time: 0.2 s
• Welding Wire Size: 0.8 mm – 1.2 mm
• Welding Electrode Size: 1.0 mm – 5.0 mm
• Insulation Class: H
• Protection Class: IP21S

SKU: 6-PROM01
