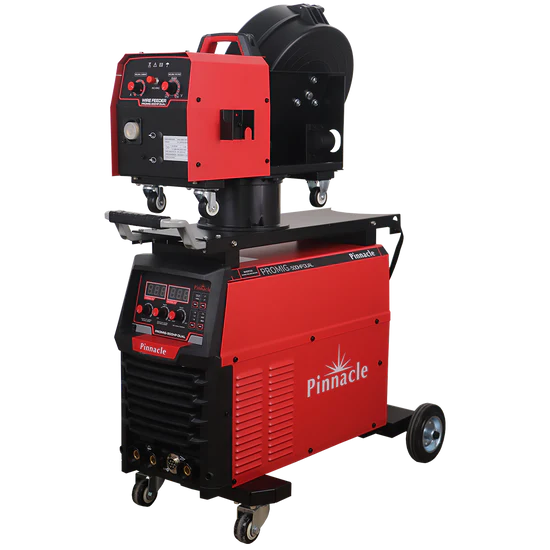

Pinnacle ProMIG 500HP Dual Voltage Single Pulse MIG Welder

Product Information:

• 500A dual voltage single pulse MIG welding for versatile applications
• Dual voltage capability for flexible power usage across different settings
• Single pulse technology for cleaner welds and reduced spatter
• IGBT inverter technology for efficient energy consumption and superior arc control
• Rugged design suitable for industrial and workshop use

Technical Data:

• Rated Input Voltage: 380V / 220V

• Rated Frequency: 50/60Hz

• Rated Input Current: 34.5A / 68A

• Output Current Range: 80-500A

• Output Voltage Range: 16.5-39V

• Duty Cycle (40'C): 60% at 500A

• Power Factor: 0.93

• No Load Voltage: 65V

• Efficiency: 85%

• Wire Size: 1.0-1.6mm

• Electrode Size: -

• Wire Feeder Type: Separate

• Insulation Class: F

• Protection Class: IP21S

SKU: 6-PROM06
