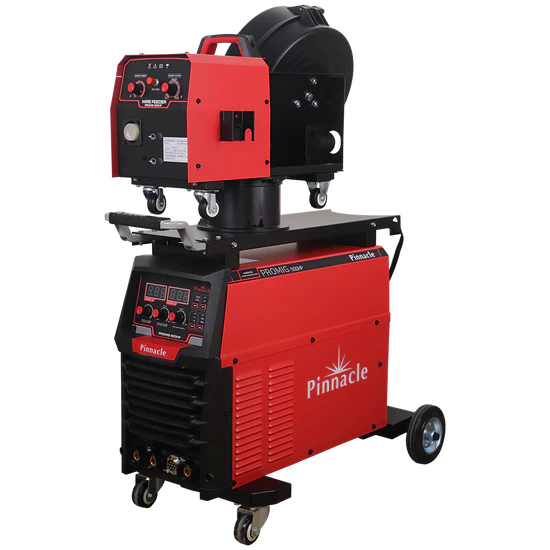

Pinnacle ProMIG 500HP Single Pulse MIG Welder

Product Information:

• 500A single pulse MIG welding capability for high-performance applications
• Single pulse technology for cleaner, more precise welds with reduced spatter
• IGBT inverter technology for enhanced energy efficiency and superior arc control
• Ideal for aluminum, stainless steel, and other challenging materials
• Rugged design for durability in demanding industrial environments

Technical Data:

• Rated Input Voltage: 380V

• Rated Frequency: 50/60Hz

• Rated Input Current: 34.5A

• Output Current Range: 80-500A

• Output Voltage Range: 16.5-39V

• Duty Cycle (40'C): 60% at 500A

• Power Factor: 0.93

• No Load Voltage: 65V

• Efficiency: 85%

• Wire Size: 1.0-1.6mm

• Electrode Size: -

• Wire Feeder Type: Separate

• Insulation Class: F

• Protection Class: IP21S

SKU: 6-PROM05
