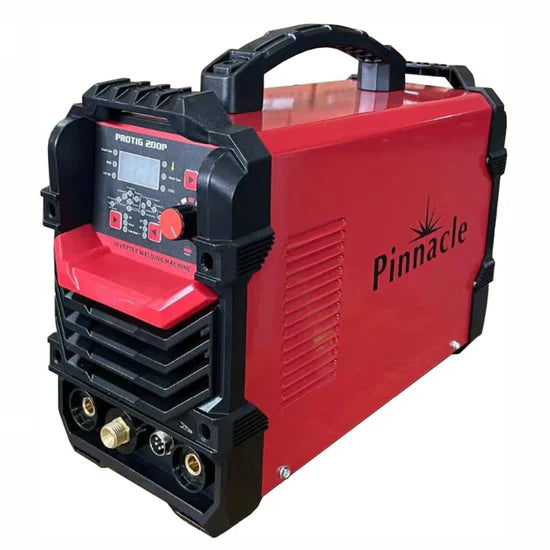

Pinnacle PROTIG 200P

Product Information:

• State-of-the-Art IGBT Technology: Guarantees a consistently robust and effective welding experience.

• Versatile Welding Modes: Features both Pulse TIG and MMA settings, ensuring adaptability for various tasks.

• Integrated Safety Systems: Comes with over-current, over-heat, and under-voltage protection, enhancing user safety.

• Variable Control Functions: Includes VRD and 2T/4T options for diverse welding requirements.

• Customizable Welding Settings: Tailor your welding parameters to fit the job at hand.

• Foot Pedal Ready: Enhances precision for complex welding projects.

Technical Data:

• Power Supply: 220V ± 15%, 50/60 Hz

• Idle Voltage: 12V (VRD Mode) / 60V (Standard)

• Input Amperage: 35A

• Output Range: MMA 20-160A | TIG 10-200A

• Duty Cycle: 60% at full power

• Efficiency Rating: 85%

• Power Factor: 0.85

• Insulation Class: F

• Protection Class: IP21S

• Arc Starting: High-Frequency (HF)

• Electrode Diameter Range: MMA 1.6-4.0mm | TIG 1.0-3.2mm

SKU: 6-PROT011
