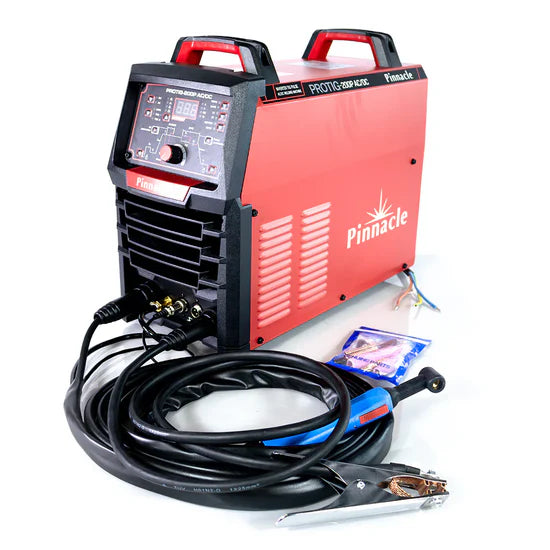

Pinnacle ProTIG 200P AC/DC Pulse TIG Welding Machine

Product Information:

• 220V +- 15%, PH1 – 200Amp
• AC/DC Pulse TIG / MMA Welding Machine
• Hot Start, ARC Force & Anti-Sticking build-in
• Over current, Over heat, Under Voltage protection
• Professional parameter adjustable
• Could be equipped with optional foot pedal

Technical Data:

• Rated Input Voltage: 220V ± 15%
• Rated Frequency: 50/60 Hz
• Output No-Load Voltage: 68 V
• Rated Input Current: 28 A
• Welding Current Range: 5–200 A
• Rated Duty Cycle: 60%
• Efficiency: 80%
• Power Factor: 0.73
• Insulation Class: H
• Protection Class: IP21S
• Arc Strike Way: High Frequency (HF)
• MMA Electrode Size: 1.6 mm – 4.0 mm

SKU: 6-PROT02
