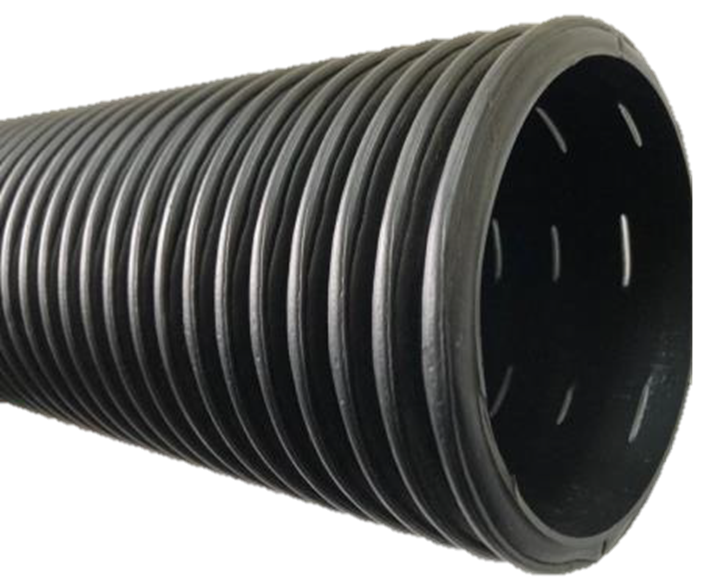

Slotted HDPE Pipe 160mm

ONLY SOLD IN 6M AND 50M

Product Information:

SANS 61386-24 Class N
ISO 9001:2008

• The pipe is black on the outside and black on the inside.

• Supplied in lengths of 6 meters, or coils of 50 meters, complete with couplings.

• The manufacturer’s Quality Management System is certified to UNI EN ISO 9001:2015.

• Pipes conform to SANS 61386-24 and is marked as Class N with crush resistance higher than 250N for coils and higher than 450N for 6m lengths.

Features & Benefits:

• Design: Double-wall pipe Black on the outside and black on the inside.

• Application: Refer to section below.

• Crush Resistance: SANS 61386-24 with 5% deformation of internal diameter.

• Radius of bending: 15 times the external diameter (coils only).

• Presentation: 6 meters lengths; 50 meters coils.

• Accessories: Couplings.

• Installation: Underground.

• Chemical Resistance: slotted HDPE pipe is manufactured from HDPE which is one of the most chemically resistant polymers. It is unaffected by acids or alkalis in the most aggressive soils and effluents. A detailed chemical resistance specification is
  available on request.


Type Testing (Physical Tests):

• Melt Flow Rate: According to ISO 1133: condition 1T (test parameter: 190°C / 5 Kg / 10 mins) on raw materials of both walls.

• Density: According to ISO 1183 (test temperature 23°C) on the pipe and on raw materials of both walls.

Conformity Tests:

• Visual Inspection: According to UNI ISO 4582 sections 3-4. The product is marked with an indelible blue line longitudinally every 3 meters along the pipe. The apex of HPDE pipe is marked to facilitate the correct orientation during installation.

• Dimensions: Mean external diameter (cm), minimum internal diameter (dim).

• Crush Resistance: According to SANS 61386-24.

• Impact Test: According to SANS 61386-
  24. Operating Limits: -50°C to +60°C.

• Flammability: This test is excluded as we manufacture conduit for buried applications.

SKU:

• S160MM6m
• S160MM50m
